Using counter 0 of ATMega32 to count external input pulses

Timer/counter 0 could operates in timer mode, or counter mode. In counter mode, the TCNT0 increase its values whenever the input pulse fed to pin PB0/T0 falling down or rising up. We can select between these to pulse transitions.

To use counter, we must work with CS02:00 of the TCCR0 register.

• Timer/Counter Control Register 0 (TCCR0)

BIT 7							BIT 0
FOC0	WGM00	COM01	COM00	WGM01	CS02	CS01	CS00

When the CS02:00 = 0x06 , then TCNT0 count the falling edge pulse clock fed to pin PB0/T0.

When the CS02:00 = 0x07, then TCNT0 count the rising edge pulse clock fed to pin PB0/T0.

TCNT0 is 8-bit wise read/write register. It counts from 0x00 to 0xFF. When its value rolls from 0xFF to 0x00, then the TOV0 flag is set.

We can count any value larger than 0xFF by working with TOV0, and adding more variables with programming technique.

In this example, I create a counter device display the counting result up to 9999.

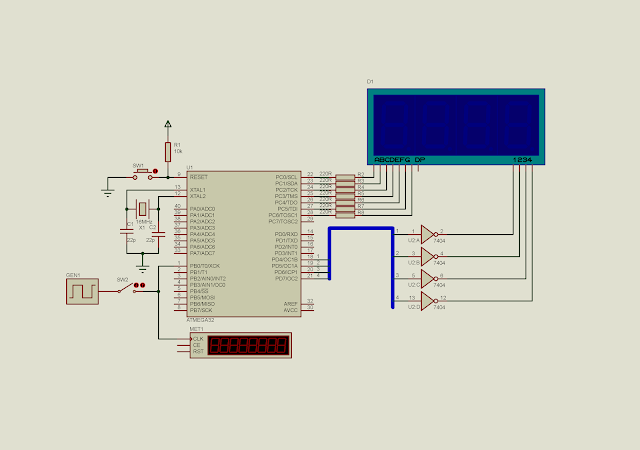

Schematic diagram.
PortC and PortD display the 4-digit SSD.
SW2 connects the source signal GEN1
to pin PB0/T0, fed the counter 0.
MET1 roles as a pulse counter here, counting
the input signal from GEN1 whenever SW2
is closed.

Source code is here:

A screen shot of this program.

A simulation screen shot.
The counting reaches 2179 with some bugs.
